CHAIN
CHAIN ASSEMBLIES
CAUTION! NEVER EXCEED WORKING LOAD LIMITS!

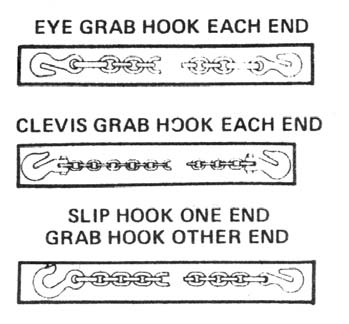

CHAIN ASSEMBLIES
High test chain and Transport chain are available with clevis grab hooks each
end.
Available in ready to use custom lengths with grab hook each end for truck tie
down and lashing uses.
All attachments, hooks, connecting links, swivels, slings links, etc. are available
on request.
Stainless steel chain available on request.
HIGH TEST CHAIN
Tow & binder chain Log & Utility chain
PROOF
WORKING
BREAKING
LENGTH
LOAD
SIZE (in.)
LOAD
LOAD
(ft.)
LIMIT
LIMIT (in.)
(lbs.)
(lbs.)
5/16
16
3900
6400
11600
5/16
20
3900
6400
11600
3/8
16
5400
8900
16200
3/8
20
5400
8900
16200
1/2
20
9200
15300
27600
TRANSPORT CHAIN
Truck tie down chain Tow & binder
chain with clevis grab hook each end.
PROOF
WORKING
LENGTH
LOAD
BREAKING
SIZE (in.)
LOAD
(ft.)
LIMIT
LOAD (lbs.)
LIMIT (in.)
(lbs.)
5/16
16
4700
9400
18800
5/16
20
4700
9400
18800
3/8
16
6600
13200
26400
3/8
20
6600
13200
26400
1/2
20
11300
22600
45200

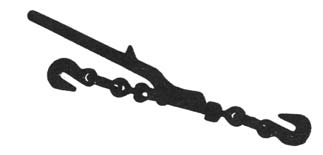

LOAD BINDERS
CAUTION! NEVER EXCEED WORKING LOAD LIMITS!
Forged steel, heat treated, painted orange.
WORKING BREAKING WEIGHT
LOAD
TAKE UP
SIZE (in.)
STRENGTH EACH
LIMIT
(in.)
(lbs.)
(lbs.)
(lbs.)
1/4
2600
9100
3.10
2 1/2
5/16 3/8
5400
19000
8.25
3 3/4
3/8 1/2
9200
27600
11.50
4 1/4
1/2 5/8
11500
34500
12.70
4
